military grade cell phone

◇ Platform

MTK6589T 1.5GHz Quad core

◇ SW version

Android 4.2.2

  Basic product information

◇ Platform

MTK6589T 1.5GHz Quad core

◇ Band/Mode

GSM/GPRS/EDGE/WCDMA/HSDPA/HSUPA:
GSM:850/900/1800/1900MHz
WCDMA:2100MHz/900MHZ(standard) or 2100MHZ/850MHZ(Optional)

◇ Data UL/DL rate

GPRS:53.6Kbps   EDGE:236.8Kbps
Wcdma Uplink11.5Mbps,Downlink 42.2Mbps;

GPRS/EDGE class 12

◇ Dual SIM

Yes

◇ Size(mm)

137.3*70*15

according to ID design

◇ Weight(with battery)

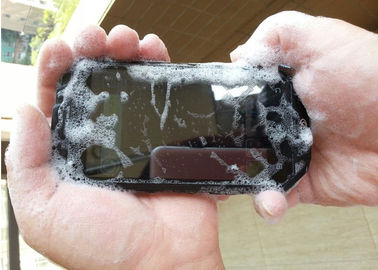

◇ Water resistance dust resistance

IP68

◇ Target Battery Capacity

2000mAh

◇ Target Internal Memory

1GB RAM+16GB ROM

◇ External Memory Connector

Yes

◇ Screen Type/Size/Pixel/Color Depth

4.3" QHD 960*540 MIPI

◇ Touch Lens

Yes

(GorillaGlass) Capacitive TP

◇ Camera

13MP+2MP

◇ Antenna

Embedded

◇ G-Sensor

Yes

◇ Bluetooth

Yes

HSP, HFP, A2DP, OBEX, SPP,FTP client,HIDD

◇ WIFI

Yes

◇ FM

Yes

◇ GPS

Yes

◇ Proximity Sensor

Yes

◇ Light Sensor

Yes

◇ E-Compass

Yes

◇ 3D Accelerator

Yes

◇ OTG

Yes

◇ NFC

No

 ID/MD Description

Item

◇ Type

PDA

◇ Color

Black

◇ External Keys

Side keys:

2 volume side key

Power key

1,right side

Reset key

No

Menu key

1, touch

Search key

No

Back key

1,  touch

Home Key

1, touch

SOS key

1

Torch key

1

◇ Input method

Touch

◇ Materials

Plastic,rubber

◇ Indicator light

No

◇ Keypad back light

Yes, White

◇ I/O Connector

   * Charger/Data cable Connector

Micro USB

   * Audio Jack

Yes

3.5mm

◇ Physical Dimensions

(measurements with battery)

   * Width (mm)

70mm

   * Thickness (mm)

15mm

   * length (mm)

137.3mm

   * Weight (g) - please specify target

120g

with battery

 HW Description

Item

◇ Chipset Model

   *  CPU Platform

MTK6589T 1.5GHz Quad core

   *  PMU Platform

MT6320

   *  RTR Platform

MT6167

◇ Mode(s)/Band

◇  GPRS

Yes

◇  EDGE

Yes

◇  HSDPA

Yes

◇  HSUPA

Yes

◇   UMTS/HSDPA/HSUPA

   * 2100MHz

Yes

   * 900MHz

Yes

850MHZ is optional

   * 850MHz

No

◇   GSM

   * 850MHz

Yes

   * 900MHz

Yes

   * 1800MHz

Yes

   * 1900MHz

Yes

◇ Memory

◇ Internal Memory

   * Flash Memory Type & Size

16GB

   * RAM Memory Type & Size

1GB

◇ External Memory

   * Connector type

T-Flash

No Plug & Play

   * Maximum Memory Support

32GByte

◇ LCD

   * Main LCD

4.3" QHD

   * Main LCD backlight

White

   * Touch lens

Yes

Capacitive TP, support Glove Touch

   * Sub LCD

No

◇ Multimedia

   * Stereo ring tone

Yes

   * VideoPhone

Yes

   * Voice Memo/Recorder

Yes

   * Video Recorder

Yes

   * Hands-free

Yes

   * FM radio

Yes

   * Adobe Flash

No

   * Streaming Media

Yes

   * Speaker

Yes

Single speaker 11*15mm

   * Receiver

Yes

◇ Wireless transmission

   * WiFi

Yes

Wireless transmission

   * OTG

Yes

   * Bluetooth

Yes

   * PC modem

No

   * NFC

No

◇ Battery

   * Battery capacity

2000 mAh

support wireless charging

   * Standby time

TBD

Draft

   * Talking time

TBD

Draft

   * Browser (LCD on time)

TBD

Draft

   * MP3 time with audio jack

TBD

Draft

   * VT time

TBD

   * Backup battery

Yes

◇ Accessory

   * AC charger

Yes

1

   * Car charger

No

0

   * Headset

Yes

1

   * Bluetooth headset

No

0

   * USB Cable

Yes

1

   * External memory (T-Flash )

No

0

   *Others

 SW Description

Item

◇ Basic Functions

   * Text Input

Touch

   * Phone book

Yes

◇ Office Assistant and download

   * Document Viewer (Word, Excel, PPT, PDF)

No

   * Document Editor (Word, Excel, PPT, PDF)

No

   * Predictive text

Yes

   * WAP downloads

Yes

   * Ringtone downloading

Yes

   * Image downloading

Yes

   * Games downloading

Yes

   * Video downloading

Yes

◇ Messaging

   * SMS

Yes

   * EMS

Yes

   * E-mail

Yes

   * IM (Instant Message)

Yes

   * Push mail (IMAP4,POP3,SMTP)

Yes

Gmail

◇ MMS

   * MMS supported format

Jpeg ,GIF,WBMP,MIDI,AMR

   * MMS audio supported format

MIDI

   * MMS size/item

300K

◇ Browser

   * Http Browser

Google

   * XHTML

yes

3rd party software

   * JAVA version

no JAVA

   * Flash

NO

   * GPS

yes
